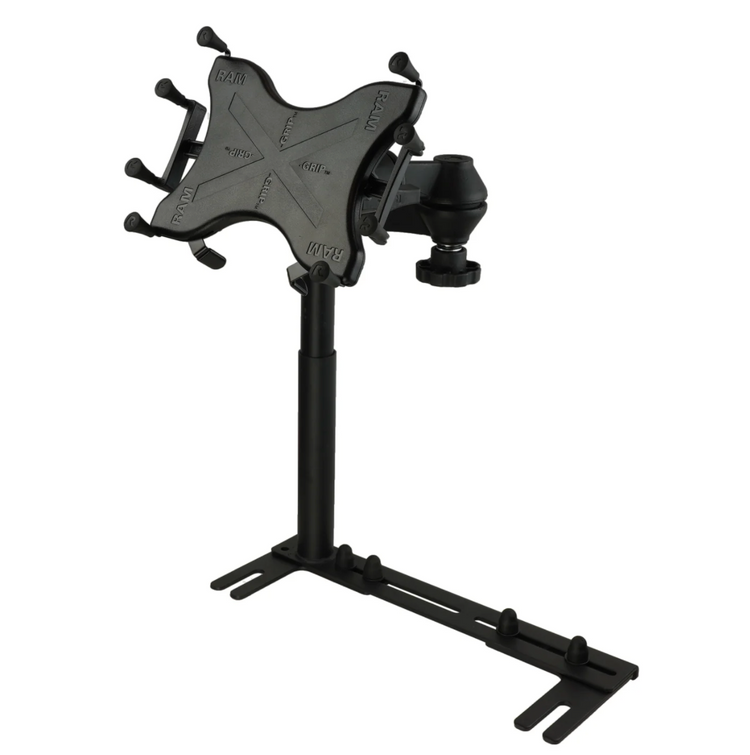

RAM-VB-196-UN9 RAM Mounts X-Grip® 9-10" Tablet Mount with No-Drill™ Universal Base
RAM-VB-196-UN9 RAM Mounts X-Grip® 9-10" Tablet Mount with No-Drill™ Universal Base
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
SPECIAL NOTE: YOU MUST MEASURE YOUR DEVICE (WITH CASE IF APPLICABLE) AND COMPARE WITH THE TABLET MOUNT SPECS BELOW BEFORE PURCHASING. ABSOLUTELY NO REFUNDS OR EXCHANGES FOR REASON "DOES NOT FIT MY TABLET" - NO EXCEPTIONS.
HOLDER DIMENSIONS:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
FEATURES
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

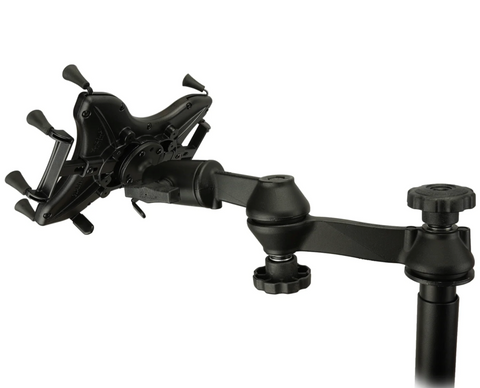

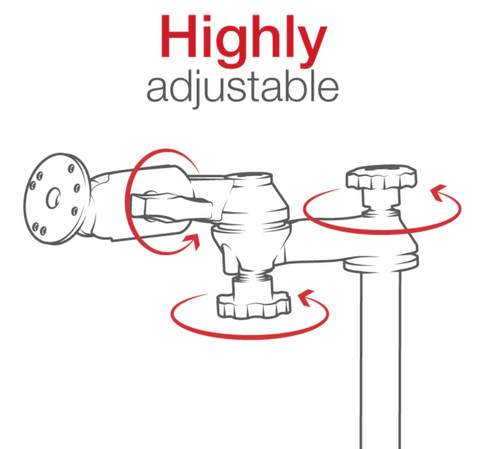

- Dual articulating swing arm allows for ideal device placement
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW
HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot
HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

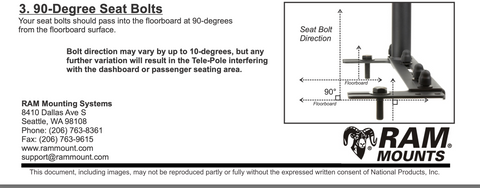

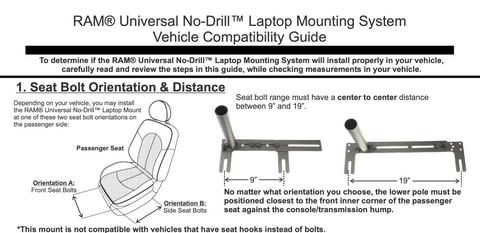

Seat Bolt Distance: 9"-18.875" center to center
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite
PACKAGING TYPE
Box
WEIGHT
12.18 lb
ADDITIONAL INFORMATION

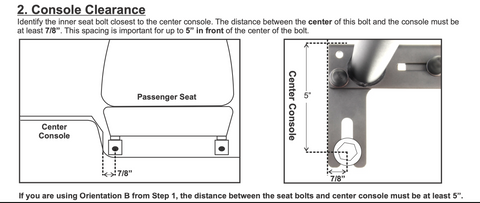

Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
