RAM-VB-129-A-SW1 RAM No-Drill™ Laptop Mount for the '14-24 Ram Promaster + More
RAM-VB-129-A-SW1 RAM No-Drill™ Laptop Mount for the '14-24 Ram Promaster + More
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
COMPATIBLE VEHICLES:
Chrysler
300 (2011-2023)
Dodge
Challenger (2011)
Charger (2005 2011-2023)
Charger Police Package (2005 2011-2023)
Magnum (2005)
Magnum Police Package (2005)
Sprinter Van (2007-2010)
Freightliner
Sprinter Van (2010-2017)
Mercedes
Sprinter Van (2010-2017)
Ram
Promaster (2014-2024)
Promaster City (2014-2023)
FEATURES
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
- Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty

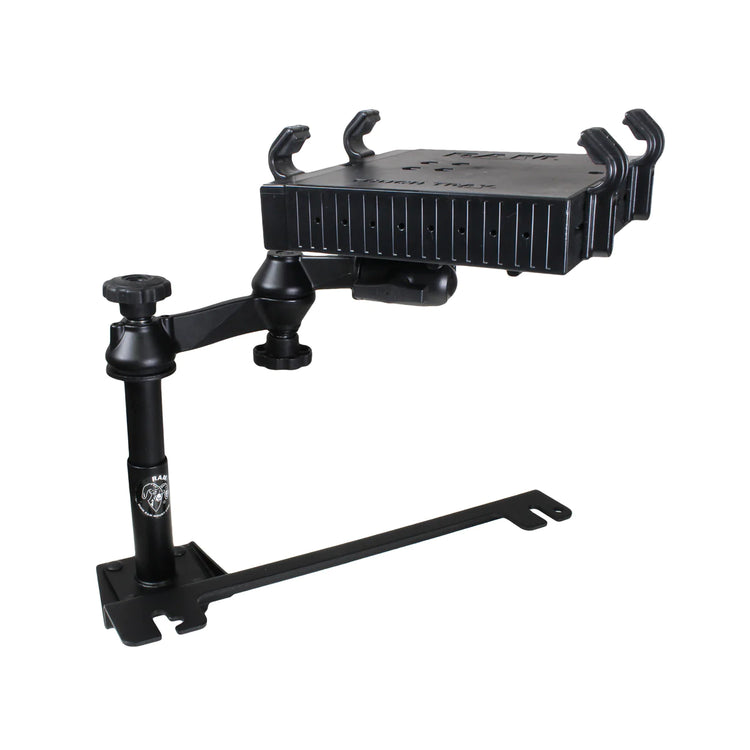

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails.

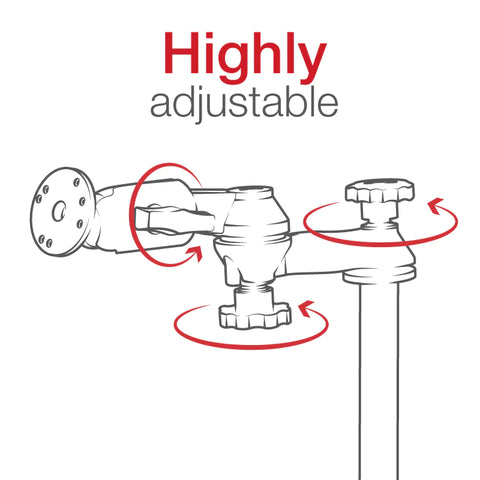

This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation.

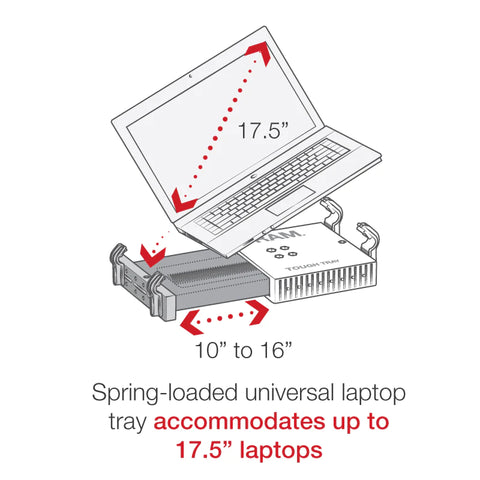

The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally.
This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives.
A screen support and USB light are also available to accessorize the tray.
Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
HARDWARE INCLUDED
Assembly Hardware
(2) M10 x 40mm Hex Bolts
(2) M10 Lock Washers
TRAY DIMENSIONS
Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"
HOLE PATTERN
Seat Bolt Distance: 16.5" center to center
BALL SIZE
C Size (1.5")
MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite
PACKAGING TYPE
Box
WEIGHT
13.0 lb
ADDITIONAL INFORMATION
The RAM-VB-129-A-SW1 will not work for bench/tube frame seats. For bench seat or tube frame seat model vehicles, consider the use of the RAM-VB-184T-SW1.
