RAM-HOL-TAB25U RAM Tab-Tite™ Tablet Holder for 10" Tablets with Case + More
RAM-HOL-TAB25U RAM Tab-Tite™ Tablet Holder for 10" Tablets with Case + More
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
BALL FOR BACK OF CRADLE IS SOLD SEPARATELY.
TABLET SHOWN IN PHOTOS IS NOT INCLUDED.
PLEASE MEASURE YOUR DEVICE AND COMPARE WITH HOLDER DIMENSIONS LISTED BELOW BEFORE PURCHASING.
HOLDER DIMENSIONS
Height Range: 9.64" - 12.32"
Width Range: 6.13" - 7.4"
Depth Range: .13" - .7"
FEATURES
- Spring-loaded holder secures various 10" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
- Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

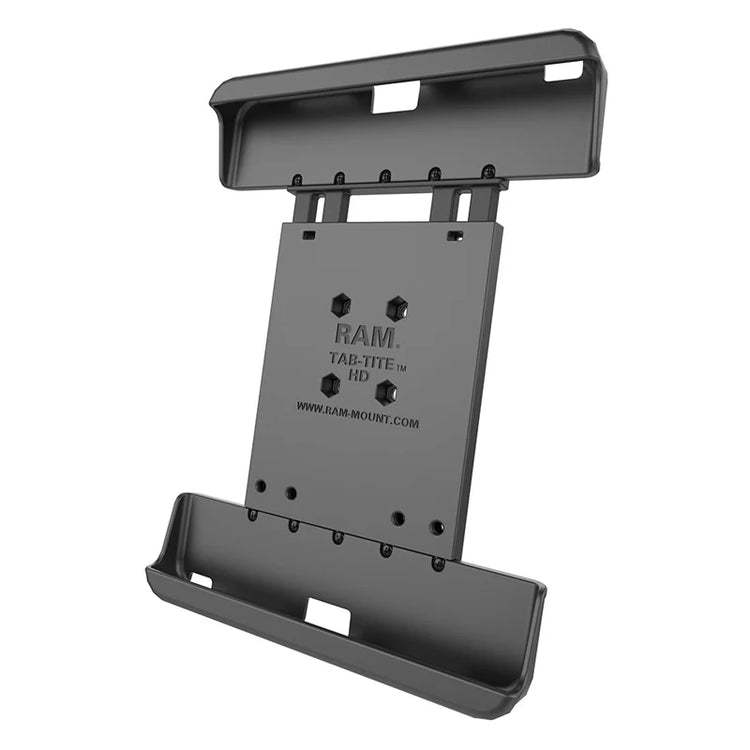

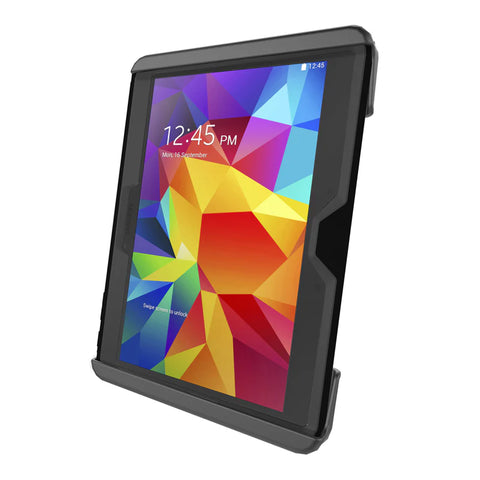

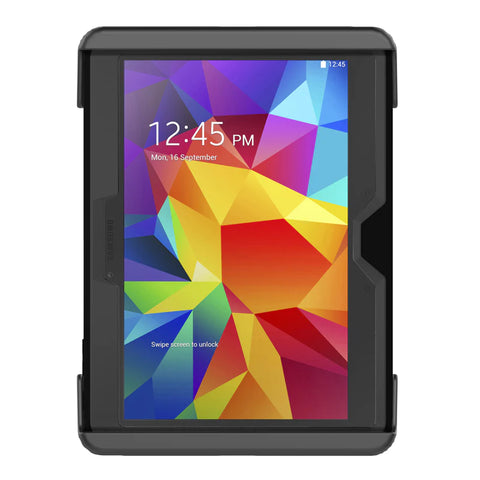

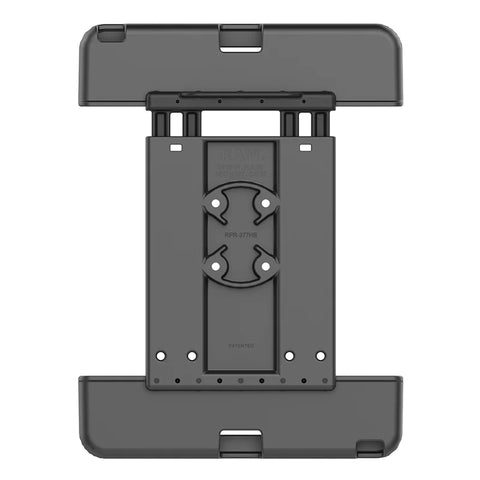

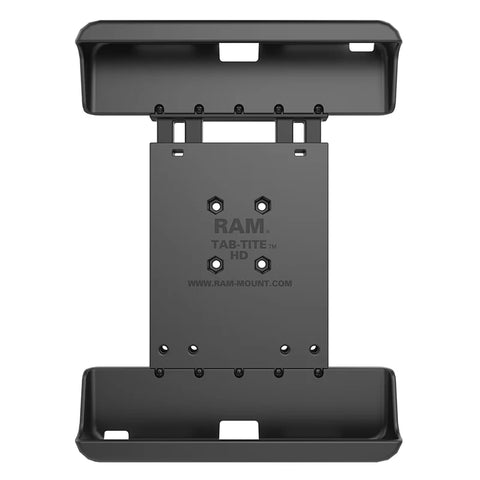

The RAM® Tab-Tite™ spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4 10.1 and Tab S 10.5 with an Otterbox Defender case, but also support many other tablet models and industrial tablet PC's.
The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models.
New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Height Range: 9.64" - 12.32"
Width Range: 6.13" - 7.4"
Depth Range: .13" - .7"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.65 lb
