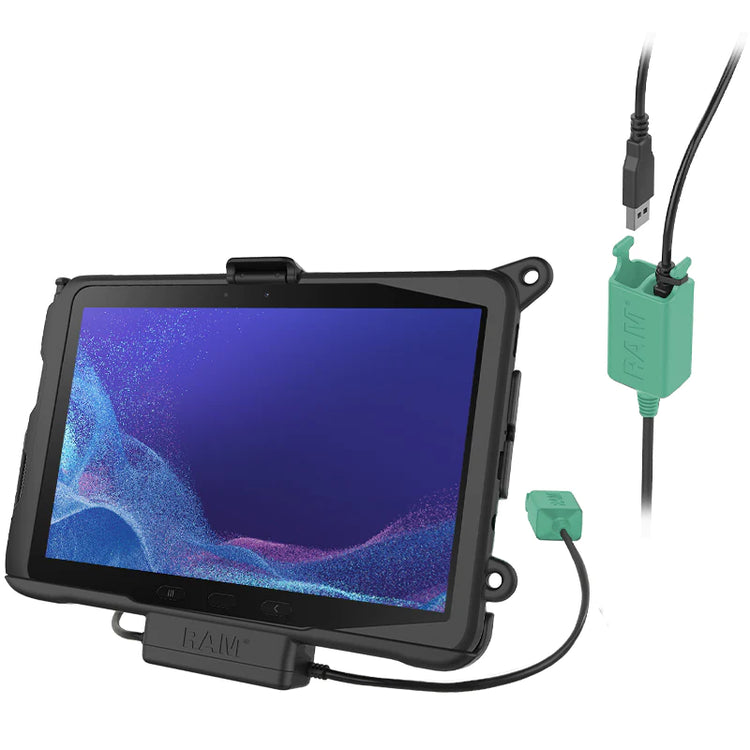

RAM-HOL-SAM52PD2U RAM® Power & Dual USB Data Dock for Tab Active4 Pro & Tab Active Pro
RAM-HOL-SAM52PD2U RAM® Power & Dual USB Data Dock for Tab Active4 Pro & Tab Active Pro
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
COMPATIBLE DEVICES:
SAMSUNG
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro
BALL MOUNT FOR BACK OF CRADLE IS SOLD SEPARATELY
THIS PRODUCT IS MEAN FOR LIGHT-DUTY APPLICATIONS IN LANDSCAPE MODE ONLY.
SPECIAL NOTE: You'll need either the optional RAM skin or the factory skin from Samsung to make a secure connection with this powered dock.
FEATURES
- Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Dual USB-A port supports up to two peripherals; mUSB port for power
- Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
This RAM® EZ-Roll’r™ power cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.
Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation.
Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern.
This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Galaxy Tab Active4 Pro and Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.
HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
OUTPUT CABLE LENGTH
.22 Meters
WARRANTY
3 year warranty
WEIGHT
0.85 lb
ADDITIONAL INFORMATION
This holder is intended only for light-duty applications in landscape mode.
