RAM-B-400-A-UN14W-V7M-1 RAM Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™

RAM Mounts

$ 215.49
Save $ 22

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

COMPATIBLE DEVICES:

APPLE:

iPhone 11
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 8
iPhone 8 Plus
iPhone SE
iPhone X
iPhone Xr
iPhone Xs
iPhone Xs Max

GOOGLE:

Pixel 3
Pixel 3 XL
Pixel 4
Pixel 4 XL
Pixel 5
Pixel 6
Pixel 6 Pro
Pixel 7
Pixel 7 Pro

LG:

G6
G6+
G7 ThinQ
G8 ThinQ
G8S ThinQ
V30
V35 ThinQ
V40 ThinQ
V50 ThinQ

SAMSUNG:

Galaxy Note 10
Galaxy Note 10 Plus
Galaxy Note 5
Galaxy Note 8
Galaxy Note 9
Galaxy S10
Galaxy S10 5G
Galaxy S10+
Galaxy S10e
Galaxy S20
Galaxy S20+
Galaxy S20 Ultra 5G
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 5G
Galaxy S22+ 5G
Galaxy S22 Ultra 5G
Galaxy S23
Galaxy S23+
Galaxy S23 Ultra
Galaxy S6
Galaxy S6 Edge
Galaxy S6 Edge+
Galaxy S7
Galaxy S7 Active
Galaxy S7 Edge
Galaxy S8
Galaxy S8+
Galaxy S8 Active
Galaxy S9
Galaxy S9+

FEATURES

Waterproof Qi comaptible wireless phone charging cradle features spring-loaded RAM^® Quick-Grip^™ design and 15W maximum output

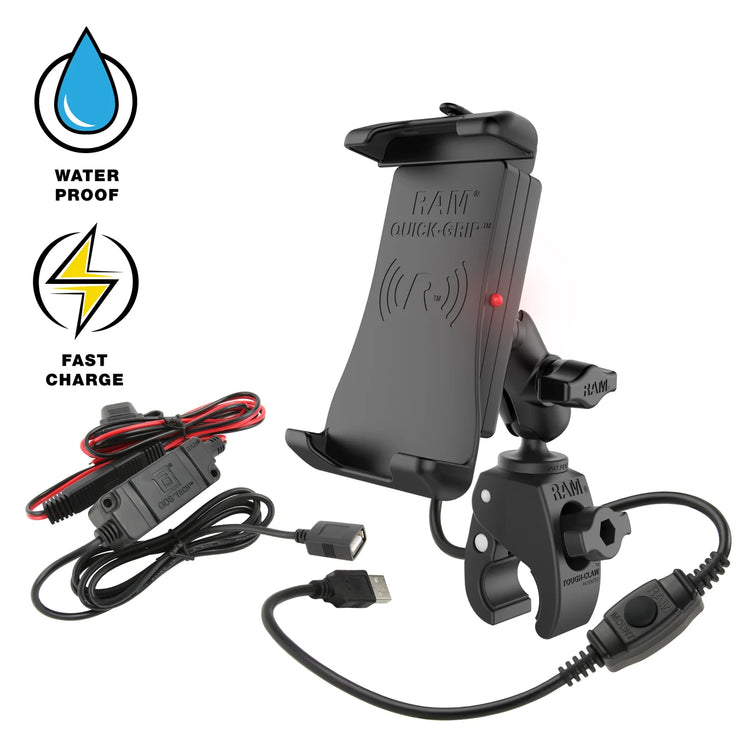

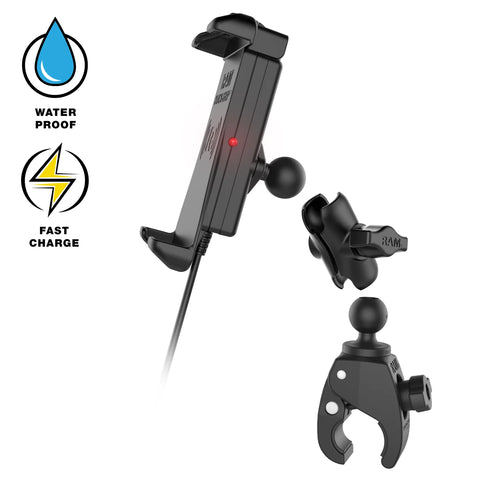

Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM^® Tough-Claw^™ clamping base, and hardwire charger
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM^® Mounts backed by lifetime warranty, RAM^® electronics backed by 1-year warranty with proof of purchase required

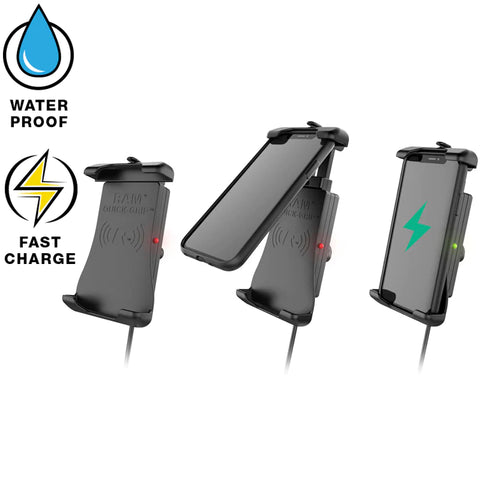

The RAM^® Quick-Grip^™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM^® Quick-Grip^™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM^® Quick-Grip^™ Wireless kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and a RAM^®Tough-Claw^™ clamping base. With the RAM^® Tough-Claw^™ base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.5” in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

HARDWARE INCLUDED

(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection

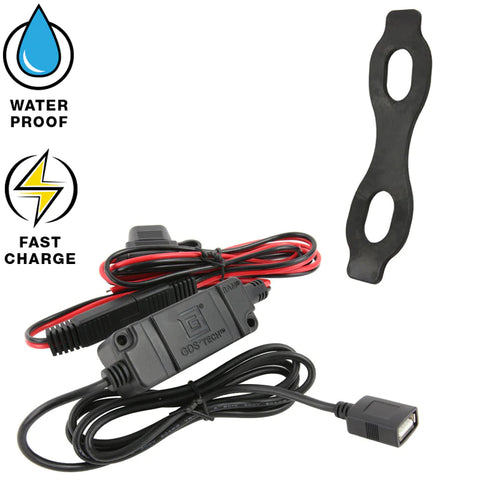

(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties

HOLDER DIMENSIONS

Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"

CLAMP RANGE

.625" - 1.14" diameter

SOCKET TO SOCKET LENGTH

1.75"

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

High strength composite
Stainless steel

PACKAGING TYPE

Retail Box

POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies

OPERATING TEMPERATURE

0°C to +37.7°C

COMPLIANCE

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS

CE Certification
KC
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY

1 year warranty

WEIGHT

3.13 lb

ADDITIONAL INFORMATION

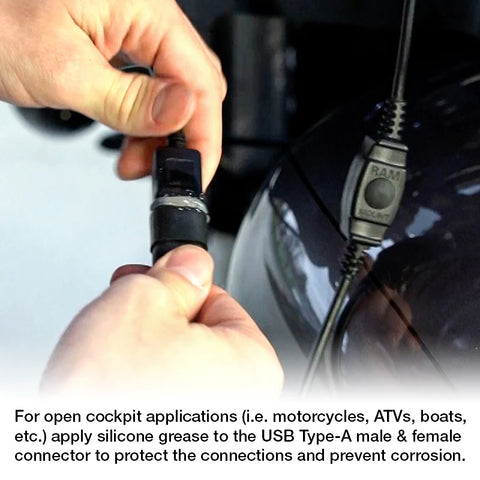

IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. video.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
