RAM-B-149U RAM Mounts Handlebar U-Bolt Double Ball Mount w/Diamond Adapter Base
RAM-B-149U RAM Mounts Handlebar U-Bolt Double Ball Mount w/Diamond Adapter Base
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
OVERVIEW

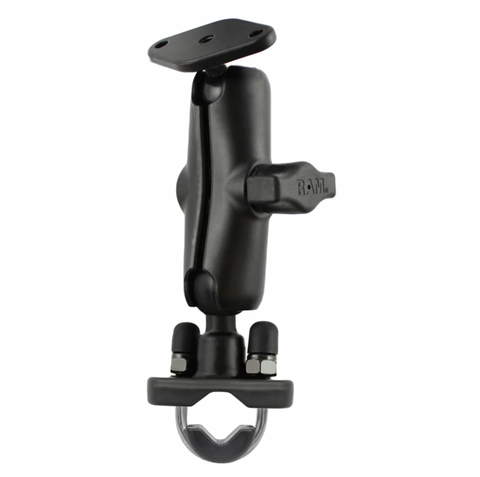

The RAM-B-149U consists of a stainless steel u-bolt base, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1" diameter
SOCKET TO SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.54 lb
