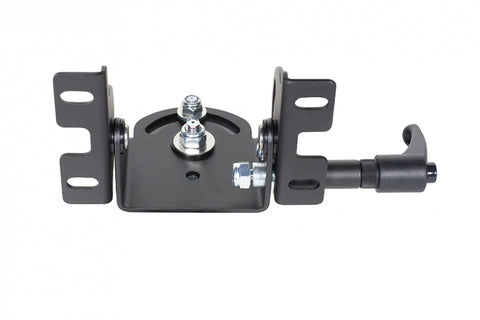

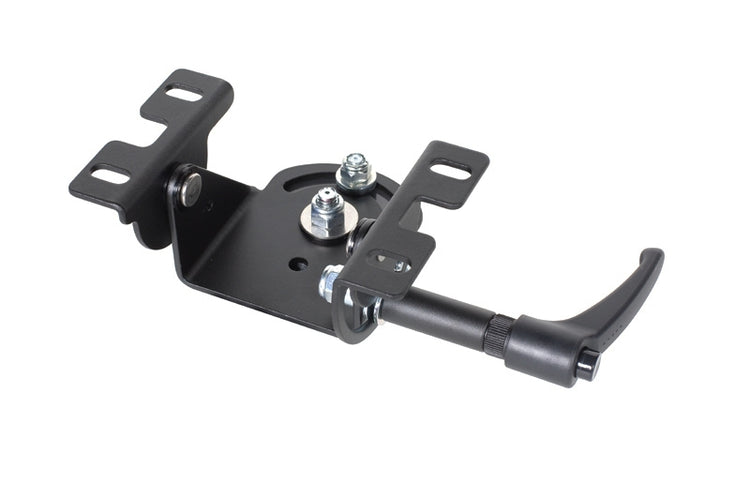

Gamber Tilt/ Swivel Motion Attachment - 90 Degrees 7160-0419
This item replaces Item No. DS-CLEVIS and the CLEVIS 0-90
Placement:
Any Upper Pole, Complete Pole, Low Profile Brackets or any Smiley Face Pattern
Tilt:
Yes - up to 90 degrees fore/30 degrees aft
Swivel:
Yes - up to 60 degrees right/60 degrees left
Slide:
No
Weight:
1.25 lbs / 0.57 kg
Dimensions:
Height: 2.34 in / 5.9 cm
Width: 5.0 in / 12.7 cm
Depth: 4.27 in / 10.8 cm
Features:
- New Clevis combines the tilt capabilities of the DS-CLEVIS and the CLEVIS 0-90 into one device
- Tilt capabilities:
- 90 degrees forward allows for tablets to be easily mounted
- 30 degrees aft movement with a positive stop at 30 degrees
- Riveted design allows for smoother tilt movement - Swivel capabilities:
- 60 degrees right/60 degrees left - Easier installation:
- Open throat design for ease of mounting to docking stations and cradles
- Fixed mounting studs - Does not require smiley face pattern for mounting. Built in swivel function allows Clevis to be mounted on any flat, rigid surface. When mounted to a smiley face pattern the built in swivel function gives the user more flexibility of the Clevis positioning during installation.
- Rear fastening stud allows the Clevis to be locked in a fixed position
- Lever provides a secure clamping force when tilted
- Features the Gamber-Johnson hole pattern 2" x 4" only
- Heavy gauge steel construction for long-term durability
- Black powdercoat finish for maximum corrosion resistance
- Limited Lifetime Warranty
