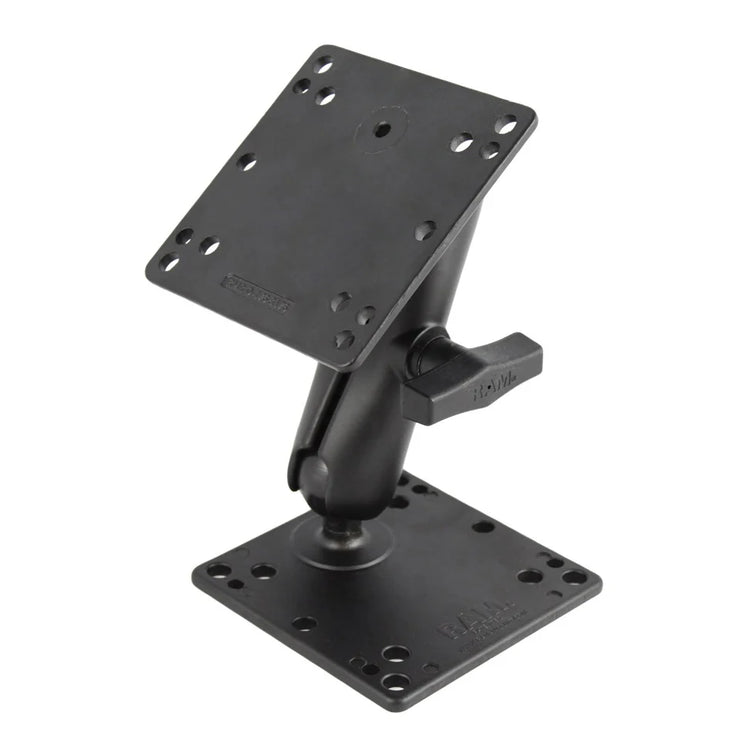

RAM-102U-246 RAM Mounts Double 100x100mm VESA Mount with 1.5-Inch Ball & Sockets
RAM-102U-246 RAM Mounts Double 100x100mm VESA Mount with 1.5-Inch Ball & Sockets
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
Overview

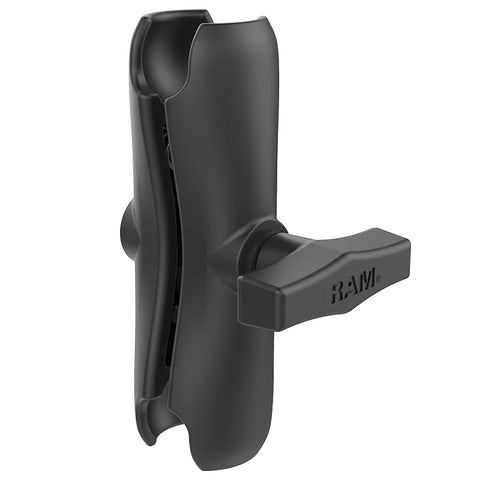

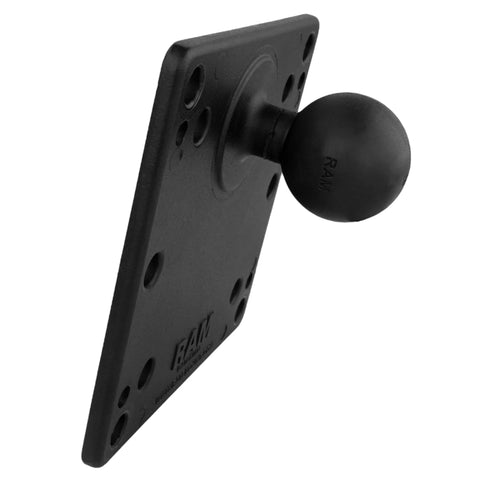

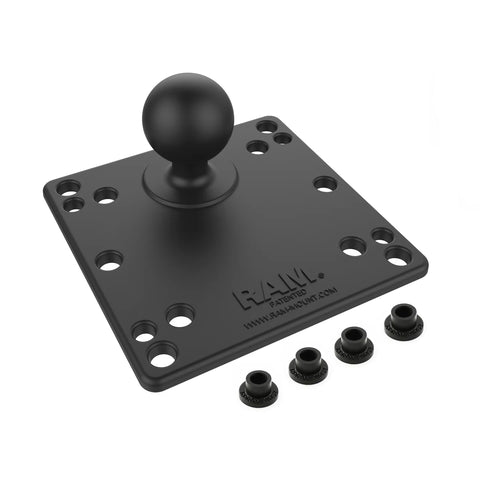

The RAM-102U-246 consists of a medium length double socket arm as well as two 100mmx100mm Vesa plates.
hardware included:
(4) .312" x .187" Shoulder Washers
product dimensions:
Overall Height: 7.35"
socket to socket length:
4.66"
hole pattern:
See Drawing
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.95 lb
