RAM-VB-202-SW2 RAM Mounts No-Drill Mount for '19-20 Ford Ranger & 2020 Explorer
RAM-VB-202-SW2 RAM Mounts No-Drill™ Mount for '19-20 Ford Ranger & 2020 Explorer
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
Compatible vehicles:
-
Ford Ranger (2019-2020) and Explorer (2020) ONLY
FEATURES
- RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments
- Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
OVERVIEW

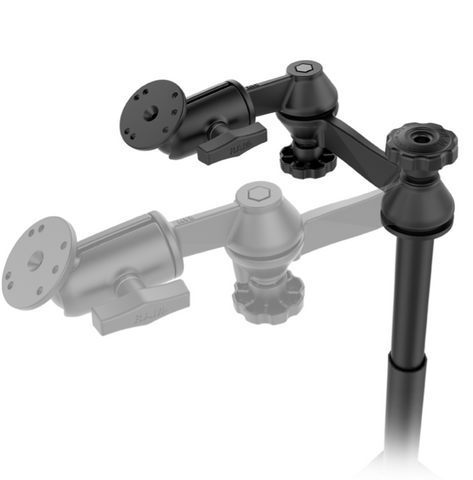

This RAM® No-Drill™ mounting system installs quickly and easily into the 2019 Ford Ranger and 2020 Ford Explorer using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
HARDWARE INCLUDED
Assembly Hardware
Foot Stabilzier
(2) M10-1.5 x 75mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers
Foot Stabilzier
(2) M10-1.5 x 75mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
C Size (1.5")
MATERIALS
Powder coated steel
Marine grade-aluminum
Marine grade-aluminum
PACKAGING TYPE
Box
Weight: Approximately 13 LBS
