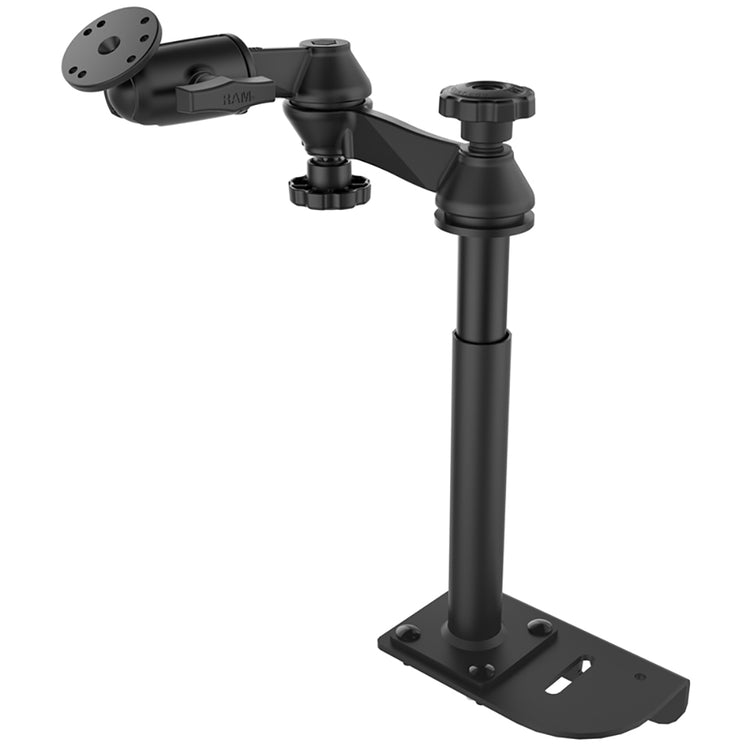

RAM-VB-194-SW2 RAM No-Drill™ Mount for '14-21 Ford Transit Cargo Van

RAM Mounts

$ 194.99
Save $ 4.50

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

FEATURES

Custom vehicle tablet mount designed specifically for 2017-2021 Ford Transit Full Size Vans
Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

COMPATIBLE VEHICLES: Ford Transit Cargo Van (2014-2022) ONLY

OVERVIEW

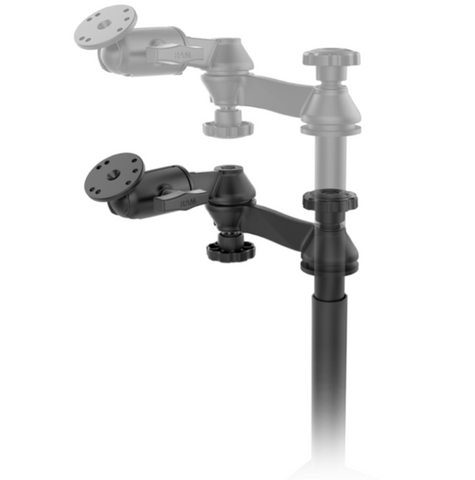

This RAM^® No-Drill^™ mounting system installs quickly and easily into the Ford Transit full size van using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED

Assembly Hardware
(1) 1.75" Washer

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL/SOCKET SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Powder coated steel
Marine grade-aluminum

PACKAGING TYPE

Box

WEIGHT

9.0 lbs.

THIS PRODUCT SHIPS TO THE UPPER 48 UNITED STATES ONLY (NO INTERNATIONAL SHIPPING)
