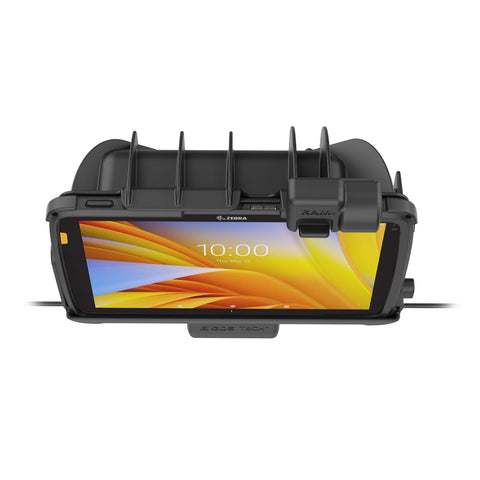

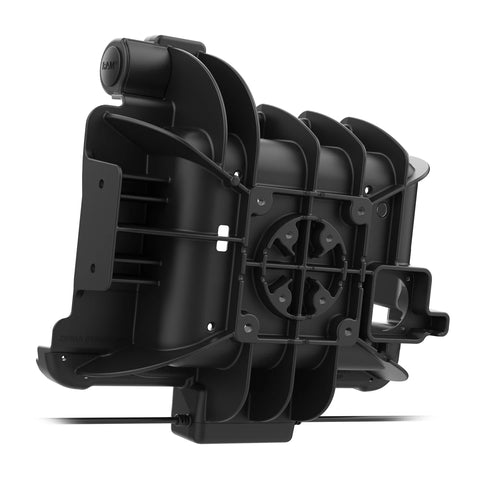

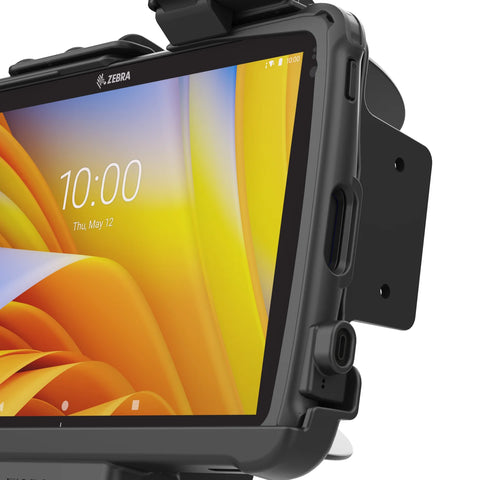

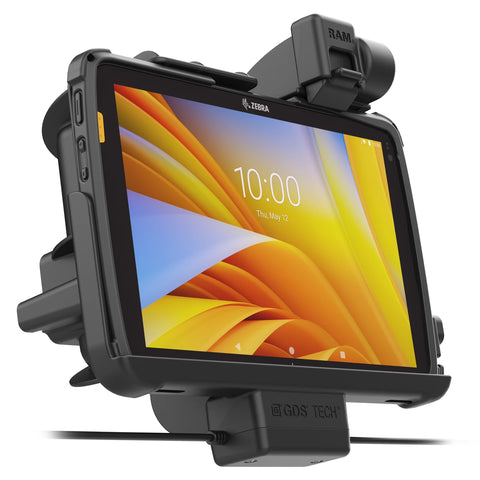

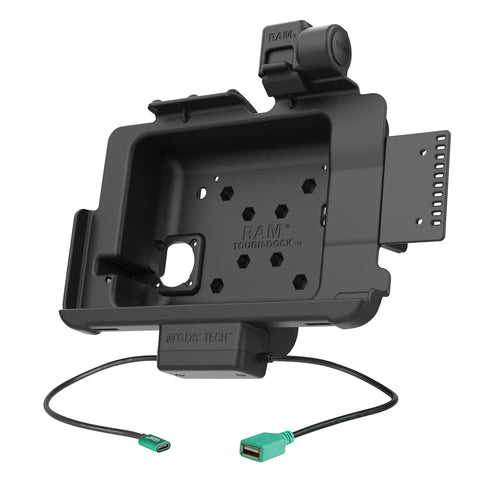

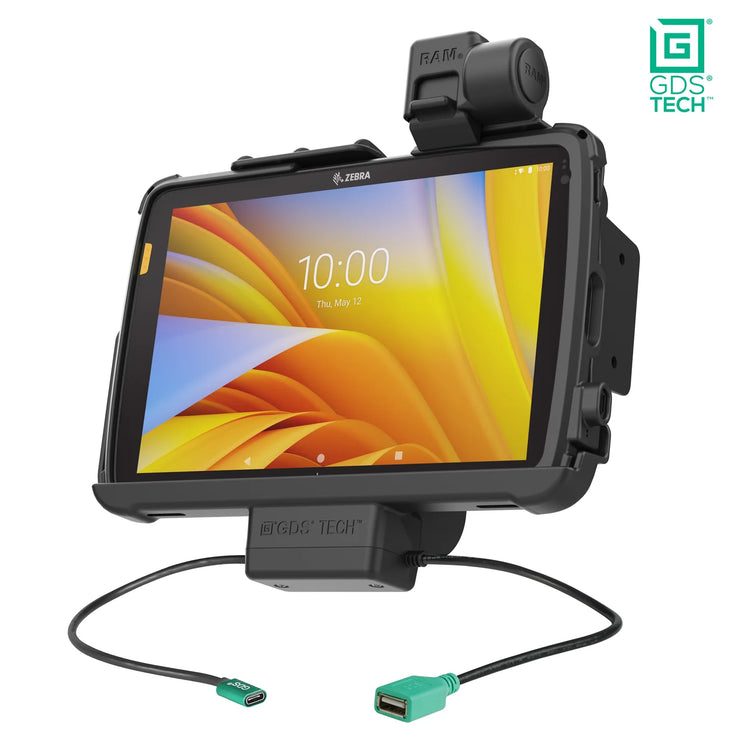

RAM-GDS-DOCKNLL-ZE21PDU RAM GDS® Power + Data Dock with Latch for Zebra ET4x 10" Tablet

RAM Mounts

$ 244.99

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

BALL FOR BACK OF UNIT IS NOT INCLUDED

SPECIAL NOTE: IntelliSkin Next-Gen^® is required for this dock. SeeRAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin^®.

COMPATIBLE DEVICES:

ZEBRA ET40 10" Tablet with Rugged Frame and IntelliSkin NG (SOLD SEPARATELY)

ZEBRA ET45 10" Tablet with Rugged Frame and IntelliSkin NG (SOLD SEPARATELY)

FEATURES

Form-fit + single USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with IntelliSkin^® protective sleeve, featuring GDS^® Technology^™
When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS^® Ergo^™ accessories
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM^® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin^® protective sleeve, this form-fit GDS^® vehicle dock (RAM-GDS-DOCKNLL-ZE21PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin^®-wrapped ET4x 10" is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS^® Ergo^™ accessories like the GDS^® Roto-Mag^™ and GDS^® Hand-Stand^™. To mount this dock, pair any RAM^® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS^® Ecosystem^™ and the built-in 2-hole mounting plate compatible with RAM^® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.^®

HARDWARE INCLUDED

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

INPUT CABLE LENGTH

215mm

OUTPUT CONNECTOR

USB 2.0 Type A

OUTPUT CABLE LENGTH

215mm

PERIPHERAL OUTPUT

500mAh

TRANSFER SPEED

12Mbps

CERTIFICATIONS

RoHS
WEEE
CE
UKCA

WARRANTY

3 year warranty

WEIGHT

1.65 lb

ADDITIONAL INFORMATION

IntelliSkin^® is required for this dock. SeeRAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin^®.
