RAM-GDS-DOCKL-ZE21PU RAM Locking GDS® Powered Dock for Zebra ET4x 10" Tablet with IntelliSkin

RAM Mounts

$ 204.99

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

COMPATIBLE DEVICES: ZEBRA ET40 10" Tablet with Rugged Framed ET45 10" Tablet with Rugged Frame ONLY

TABLET SHOWN IN PHOTOS IS NOT INCLUDED.

BALL FOR BACK OF UNIT IS NOT INCLUDED.

* IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin® *

FEATURES

Powered dock featuring GDS^® Technology^™ perfectly secures the Zebra ET40 & ET45 10" tablets with IntelliSkin^® Next Generation protective sleeve ; includes set of keys for locking capabilities; MIL-STD 810G Shock and Vibration tested
Compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
Backed by a lifetime warranty

OVERVIEW

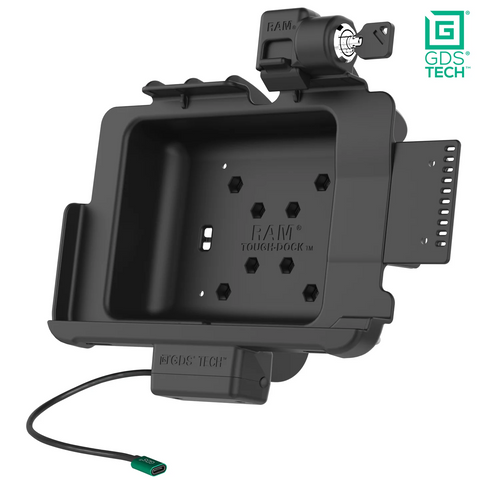

Featuring GDS^® Technology^™ for charging capabilities and a key lock for theft deterrence, the GDS^® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin^® Next Generation protective sleeve allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's USB Type-C connector.

The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM^® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM^® 2-hole diamond base for additional device mounting such as a phone or other handheld device.

HARDWARE INCLUDED

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(2) #10-24 Nylock Nuts
(2) Small Cable Ties

HOLE PATTERN

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

OUTPUT VOLTAGE

5V - 20V @ 3A

POWER OUTPUT

60W

INPUT CONNECTOR

USB Type-C

INPUT CABLE LENGTH

.21 Meter

CERTIFICATIONS

CE Certification
e-Mark Certification
RCM Certification
FCC Certification

WARRANTY

3 year warranty

WEIGHT

1.5 lbs

ADDITIONAL INFORMATION

IntelliSkin^® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin^®.
