RAM-GDS-DOCK-V10C-RJ45AU GDS® Power + USB-A & RJ45 Data Dock Cup for IntelliSkin
RAM-GDS-DOCK-V10C-RJ45AU GDS® Power + USB-A & RJ45 Data Dock Cup for IntelliSkin
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
INTELLISKIN NEXT GEN IS REQUIRED AND NOT INCLUDED.
Features
- Upgrade your existing GDS® vehicle dock to enable high speed charging capabilities for devices using IntelliSkin® Next Generation sleeves, using an 8-pin connection
- Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty

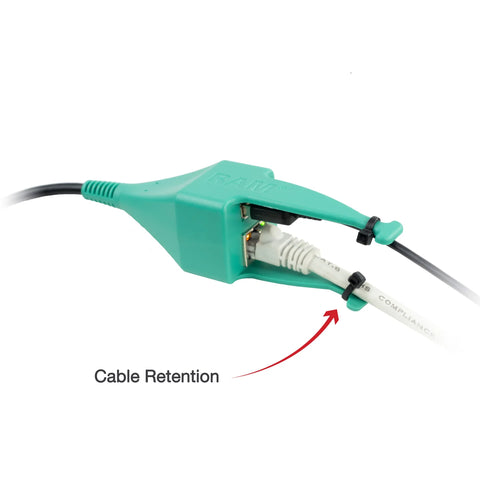

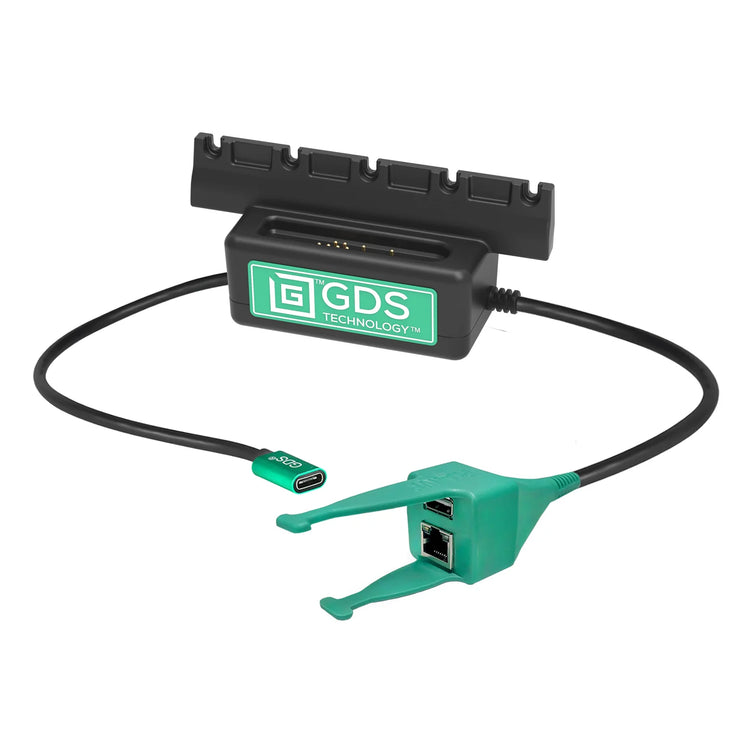

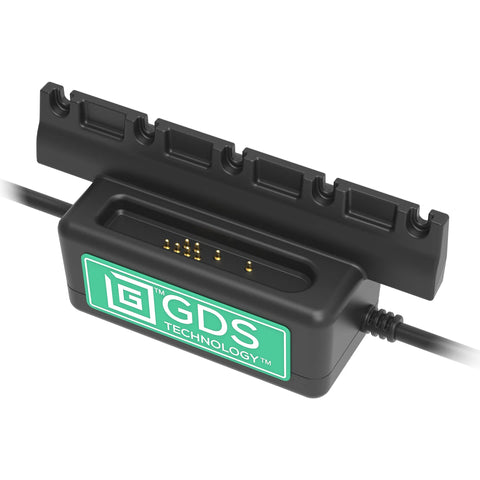

The GDS® Power + USB-A & RJ45 Data Dock Cup for IntelliSkin® (RAM-GDS-DOCK-V10C-RJ45AU) is designed specifically to support IntelliSkin® Next Generation-enabled devices. This bottom cup features 8 pogo pins powered by the USB Type-C pigtail to support high charging capabilities. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. When paired with the proper top cup, it can be used to upgrade your existing GDS® vehicle dock. Always Protected. Always Connected.®
materials
High strength composite
packaging type
Poly Bag
output voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
power output
15W
input connector
USB Type-C (Power In)
input cable length
215mm
output connector
(1) USB Type-A & (1) RJ45 Female
output cable length
215mm
peripheral output
900mAh
Warranty
3 year warranty
Weight
0.43 lb
