RAM-B-149Z-A-UN12W-V7M-1 RAM® Tough-Charge™ 15W Waterproof Wireless Charging Motorcycle Mount
RAM-B-149Z-A-UN12W-V7M-1 RAM® Tough-Charge™ 15W Waterproof Wireless Charging Motorcycle Mount
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.
HOLDER DIMENSIONS:
Width Range: 2.375" - 3.25"
Depth Range: .875" max
Overview

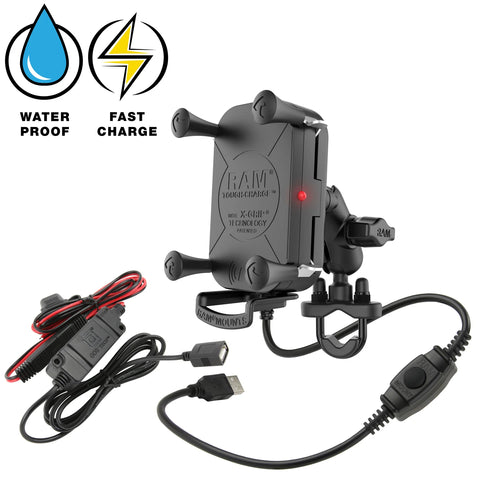

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.
This RAM® Tough-Charge™ with X-Grip® Technology wireless charging handlebar kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter.
The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Features
Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
Kit for motorcycles includes wireless cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
Hardware included:
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with cable
(4) Small zip ties
(4) Large zip ties
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
Holder dimensions:
Width Range: 2.375" - 3.25"
Depth Range: .875" max
Clamp range:
.5" - 1.25" diameter
Socket to socket length:
1.75"
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Stainless steel
Packaging type:
Retail Box
Power specifications:
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
Input connector:
USB Type-A Male
Input cable length:
20" with optional 1.2M extension cable
Operating temperature:
0°C to +37.7°C
Regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
Certifications:
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty:
1 year warranty
Weight:
1.76 lb
Additional Information:
IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.
