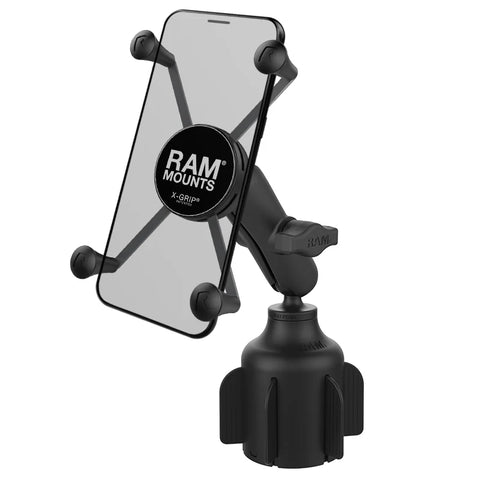

RAP-B-299-4-UN10U RAM® X-Grip® Large Phone Mount with RAM® Stubby™ Cup Holder Base
RAP-B-299-4-UN10U RAM® X-Grip® Large Phone Mount with RAM® Stubby™ Cup Holder Base
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ PRODUCT SPECIFICATIONS BEFORE PURCHASING.
CELL PHONE SHOWN IN PHOTO IS NOT INCLUDED.
Holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
Wedge dimensions:
Fits cup holders between 2.57" - 3.5" inside diameter
Overview
Sometimes, it's all about the design. If you are looking for a compact mount for your cell phone without that cookie cutter shape, you've found it. The RAM X-Grip® has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. This mount comes with the RAM Stubby™ cup holder mount.
The durable composite shell construction and flexible support fins can be trimmed to size make this cup holder base a portable and versatile solution. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5".
The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
- Includes RAM® Stubby™ cup holder ball base, medium length B size RAM® double socket arm, and large RAM® X-Grip® phone holder
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
Product dimensions:
Overall Height: 9.15"
Holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
Wedge dimensions:
Fits cup holders between 2.57" - 3.5" inside diameter
Socket to socket length:
3"
Ball size:
B Size (1")
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
High strength composite
Stainless steel
Packaging type:
Poly Bag
Weight:
1.51 lb
QUESTIONS & ANSWERS:
Q: I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
A: That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
