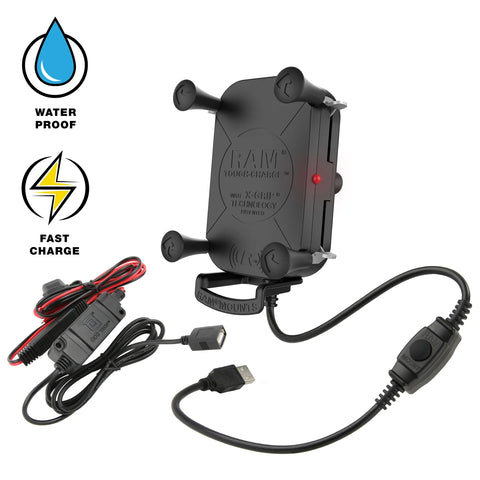

RAM-HOL-UN12WB-V7M-1 RAM Tough-Charge™ 15W Waterproof Wireless Charging Holder w/ Charger
RAM-HOL-UN12WB-V7M-1 RAM Tough-Charge™ 15W Waterproof Wireless Charging Holder w/ Charger
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
CELL PHONE, ARM AND BASE MOUNTS ARE NOT INCLUDED.
HOLDER DIMENSIONS (MEASURE BEFORE PURCHASING):
Width Range: 2.375" - 3.25"
Depth Range: .875" max
Overview
The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.
This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for motorcycles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
- Kit for motorcycles includes wireless cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
hardware included:
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
holder dimensions:
Width Range: 2.375" - 3.25"
Depth Range: .875" max
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Retail Box
power specifications:
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
operating temperature:
0°C to +37.7°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications:
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty:
1 year warranty
Weight:
1.32 lb
Additional Information:
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
QUESTIONS AND ANSWERS:
Q: Is this compatible with an iPhone 12 mini?
A: This charger is not recommended for Apple iPhone 12, 13 and 14. These models support two wireless charging technologies: Apple's proprietary "Magsafe" and WPC "Qi" standard.
Q: Is it safe to keep a phone on this product for very long periods of time? Does this product support a trickle charge type feature to protect the battery?
A: The RAM-HOL-UN12WB-V7M-1 does not have a trickle charger built in but there is an on/off switch for use when there isn't a phone in place or when you don't want to charge your device.
