RAM-HOL-SAM52CPU RAM USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro

RAM Mounts

$ 74.49
Save $ 9

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

BALL FOR BACK OF DEVICE IS NOT INCLUDED.

POWER SOURCE IS NOT INCLUDED.

COMPATIBLE DEVICES:

Galaxy Tab Active Pro

Galaxy Tab Active4 Pro

Features

Powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
Access to speakers, mics, and headphone jack remain while device is docked
Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
Compatible with the Samsung OEM skin as well as the RAM^® Skin^™
Backed by a 3-year warranty

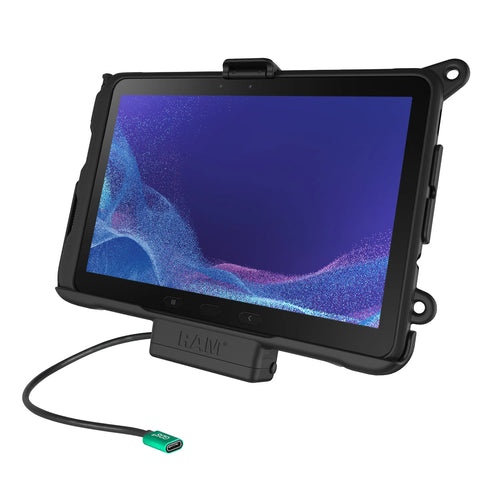

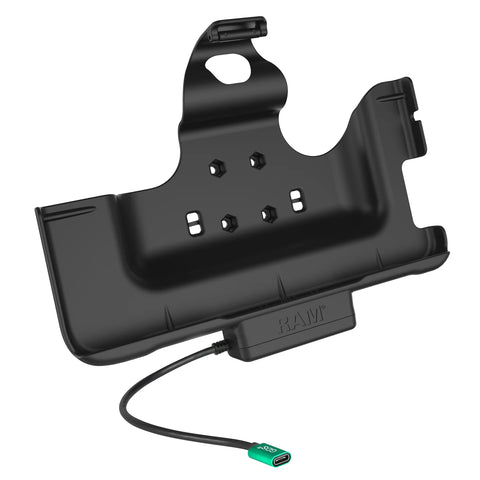

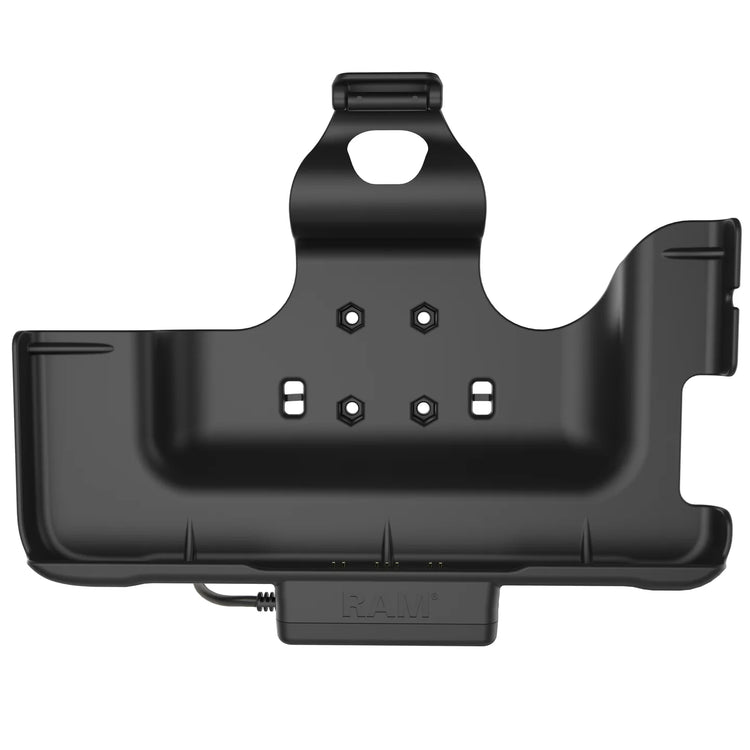

The RAM^® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM^® Skin^™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM^® Skin^™ while utilizing the GDS^® Hand-Stand^™ or GDS^® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM^® EZ-Roll’r^™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM^® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention.

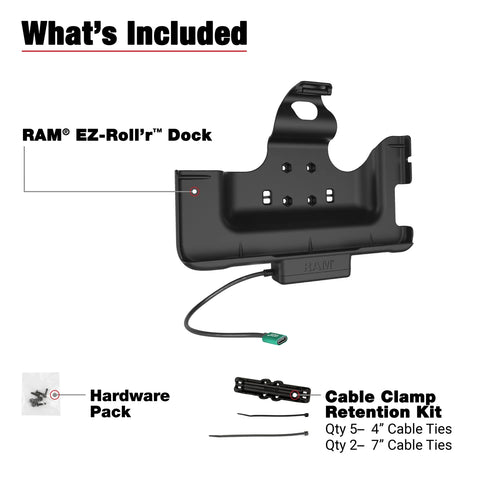

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input voltage

5.3-5.4VDC

output voltage

5VDC

power output

500mA

input connector

USB Type-C Female

input cable length

215mm

Warranty

3 year warranty

Weight

0.71 lb

Additional Information

This holder is intended only for light-duty applications in landscape mode.

This product will not support the "No Battery Mode" function of the Tab Active4 Pro.
