RAM-D-202-25-C-202U RAM Mounts D Size 2.25" Ball Mount with 3.68" Round Base & 2" x 5" Rectangular Plate for the Humminbird Helix 9, 10 & 12

RAM Mounts

$ 121.49
Save $ 15

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

SPECIAL NOTE: This item is much larger in real life than it appears to be in the photos. Please be sure to see all measurements and weights listed in the description. ABSOLUTELY NO REFUNDS FOR FAILURE TO PROPERLY VIEW ALL SPECIFICATIONS. If you receive this item and it is too large for your project, no return will be allowed and no refund will be given.

Compatible devices:

Humminbird

Helix 8

Helix 9

Helix 10

Helix 12

Solix 10

Solix 12

Solix 15

FEATURES:

Complete flat surface, drill-down mounting solution for the Humminbird Helix 8, 9, 10, and 12; RAM® Mounts ball and socket technology allows for near-infinite adjustability

Includes 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronic

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments

Backed by a lifetime warranty

OVERVIEW

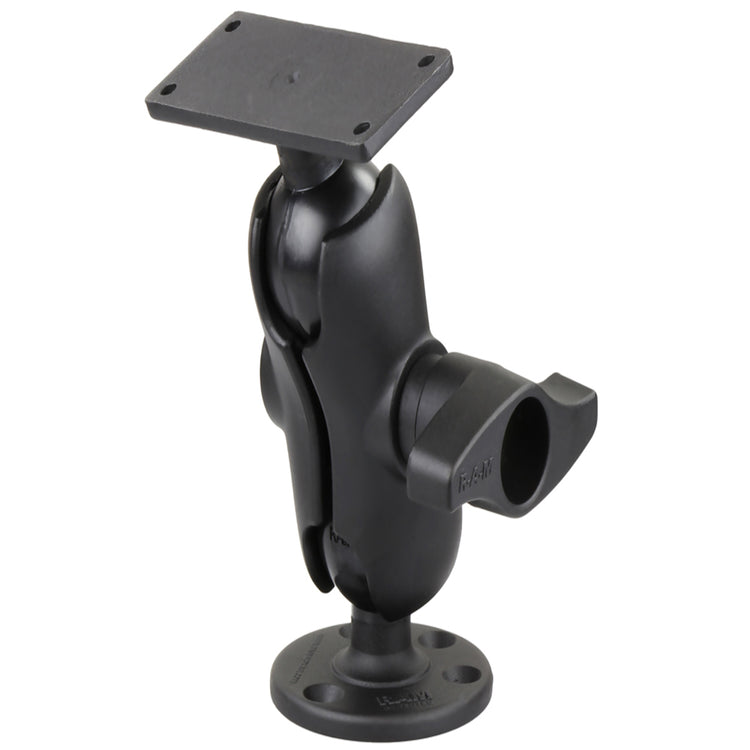

The RAM-D-202-25-C-202 powder-coated, marine-grade aluminum Humminbird Helix mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with the Humminbird Helix 9, Humminbird Helix 10, and the Humminbird Helix 12.

PRODUCT DIMENSIONS

Overall Height: 7.875"

SOCKET-TO-SOCKET LENGTH

3.6"

HOLE PATTERN

Rectangular Plate: 1.5" x 4.5"

Round Plate: See Drawing

PLATE SIZE

Top Plate: 2" x 5"

Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE

D Size (2.25")

WEIGHT CAPACITY

6 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

3.0 lbs.

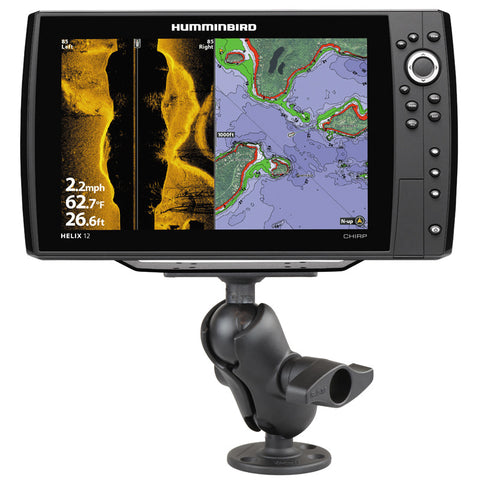

Note: HUMMINBIRD UNIT SHOWN IN PHOTO IS NOT INCLUDED

PLEASE NOTE THE LARGE SIZE OF THIS ITEM. TO PUT IT IN PERSPECTIVE, THE BALLS SHOWN IN THE PHOTO ARE 2.25" IN DIAMETER. THIS MOUNT IS "LARGE"!
