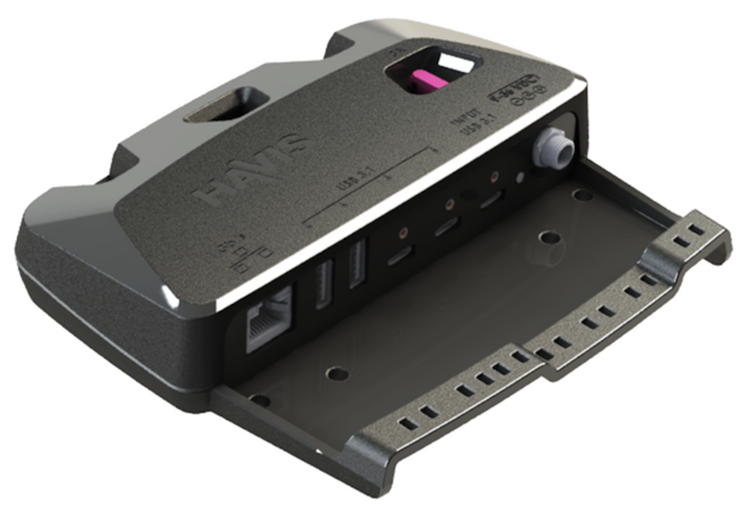

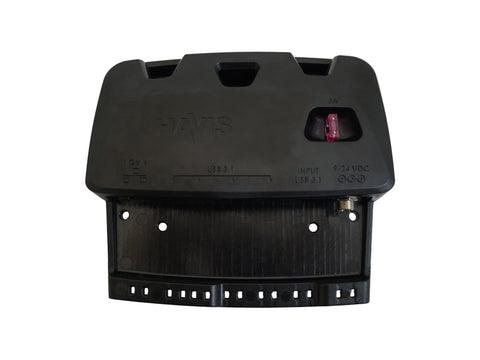

Havis DS-DA-604 Rugged USB-C Port Replication Hub
Havis DS-DA-604 Rugged USB-C Port Replication Hub
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
Features

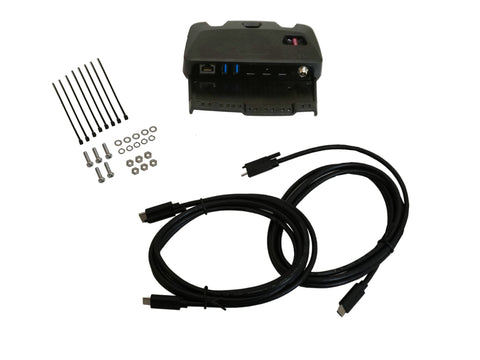

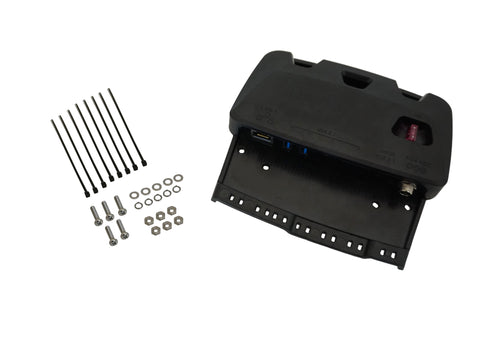

- Rugged USB-C Port Replication Hub with power cable, upstream USB-C cable, driver software, 3A fuse, and mounting hardware
- Ideal for use in unfavorable conditions where ruggedness and reliability is a necessity, such as mobile workplaces, manufacturing plants, shipping/loading docks, construction, and agricultural industries

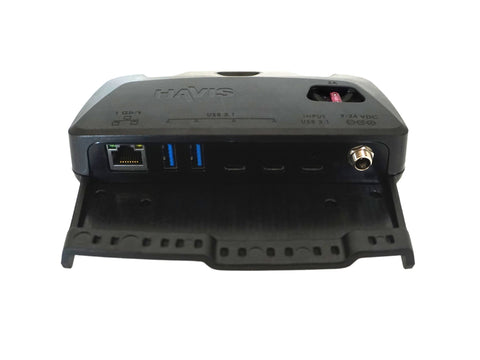

- RJ45 Gigabit Ethernet port
- 2x Type C USB3.1 Gen1 ports with thumbscrew retention feature
- 2x Type A USB3.1 Gen1 ports
- Upstream USB-C cable included with thumbscrew retention feature
- User-replaceable 3.0A fuse
- Multiple mounting hole patterns including VESA75 enable secure mounting on flat surface
- Compact, lightweight Polycarbonate-ABS construction ensures durability and temperature resistance
- Diagnostic LED indicators for hub power and RJ45 Ethernet link activity
- Integrated strain relief secures cable connections, preventing disconnects and connector damage
- Economical expansion of peripherals for harsh work environments, such as in-vehicle video, GPS, scanners, card readers, and printers
- Internal power supply keeps peripherals safe from damage during over-voltage, engine cranking and voltage spikes
Specifications
PRODUCT SPECIFICATIONS:
| Port Replication: | (1) RJ45 Gigabit Ethernet port, (2) USB3.1 Gen 1 Type A ports (maximum current 0.9A), (2) USB3.1 Gen 1 Type C ports (maximum current 1.5A) |
|---|---|
| Upstream connection: | USB3.1 Type C upstream input with thumbscrew retention feature |
| Power requirements: | Internal power supply input range 9-36VDC |
| Cables included: | Type C upstream cable with thumbscrew retention feature, threaded power cable with cigarette lighter adapter |
| Other items included: | User-replaceable 3.0A fuse, mounting hardware |
| Temperature range: | Operating environment: -30° C to 70° C (-22° F to 158° F) Storage environment: -40° C to 85° C (-40° F to 185° F) |
| Product Dimensions: | 1.25” (3.18 cm) H x 5.65” (14.35 cm) W x 4.91” (12.47 cm) D |
| Product Weight: | 0.44 lbs. ( 0.20 kg) |
| Gross weight: | 2 lbs |
