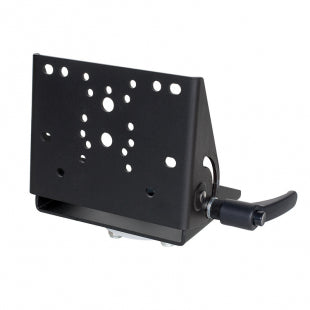

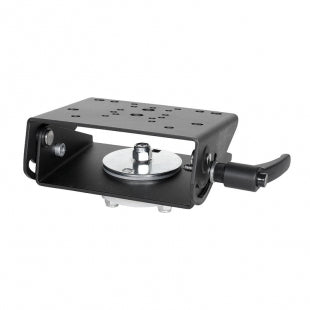

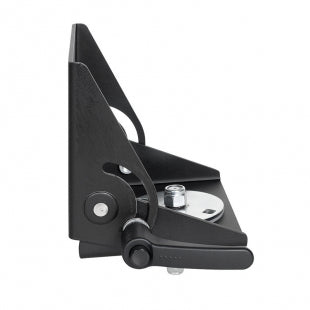

Gamber 75mm Clevis Tilt/Swivel Motion Attachment 7160-0750
Gamber 75mm Clevis Tilt/Swivel Motion Attachment 7160-0750
Gamber-Johnson's new VESA 75mm Clevis Motion Attachment combines Gamber-Johnson’s proprietary 2x4 mounting-hole pattern with the international standard VESA 75mm pattern.
This item replaces Item No. 7160-0419
Placement:
Any Upper Pole, Complete Pole, Low Profile Brackets or any Smiley Face Pattern.
Tilt:
Yes - up to 90º fore/26º aft
Swivel:
Yes - 360º
Slide:
No
Weight:
2.20 lbs. / 1.0 kg
Dimensions:
Height: 2.2" / 5.5 cm
Width: 8.2" / 20.8 cm
Depth: 4.4" / 11.2 cm
Features:
- New clevis works with the follow hole patterns:
- VESA 75mm
- Gamber-Johnson 2x4
- NEC
- AMPS
- Tilt capabilities:
- 90° forward allows for tablets to be easily mounted
- 26° aft movement
- Riveted design allows for smoother tilt movement
- Swivel capabilities:
- 360°
- Easier installation:
- Fixed mounting studs

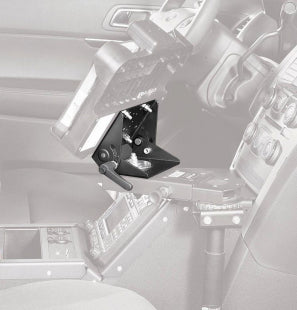

- Clevis can mount on any Gamber-Johnson console box, pole or flat, rigid surface and will provide 360° swivel function for improved ergonomic positioning within the vehicle
- Rear fastening stud allows the Clevis to be locked in a fixed position
- Lever provides a secure clamping force when tilted
- Heavy gauge steel construction for long-term durability
- Black powdercoat finish for maximum corrosion resistance
- Limited lifetime warranty
